H03RN-F

DETAIL

EUROPE STANDARD RUBBER SHEATHED FLEXIBLE CORD

H03RN-F

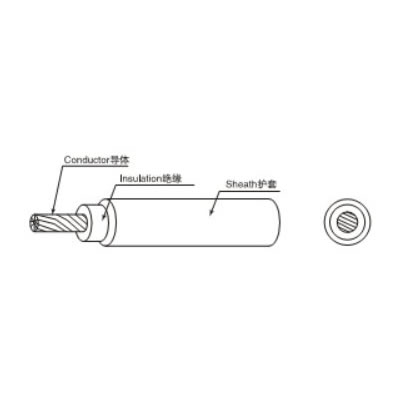

Rubber Insulated and Sheathed Single Cords

Rating:300/300V

Standard:DIN VDE 0282-8 HD22.8

No.of conductor 导体芯数	Conductor 导体		Insulation thickness 绝缘厚度 (mm)	Sheath thickness 护套厚度 (mm)	Overall diameter 完成外径 (mm)	Max Conductor resistance at 20℃ 20℃时导体电阻最大值 Ω/km
	Normal area 标称面积 (m㎡)	Construction 结构 (NO./mm)
						Bare	Tinned
1	0.5	16/0.20	0.6	0.6	3.5±0.1	39.0	40.1
	0.75	24/0.20	0.6	0.6	3.7±0.1	26.0	26.7

PACKAGE

Packaging & Delivery

1. FOB Ningbo/Shanghai port

2. Payment: 30% in advance,70% against the copy of B/L.

3. Delivery Time: 25 Working days after receipt the payment

4. Sample offered can be delivered within 7 days

5.Packing:Export cartons,pallets

Carton size: 52*30*22CM/ 43*30*28CM/ 43*30*24CM or customized

P.S. Other special requirements are also available.

INQUIRY RULES

1. Please inform me the cord type, such as 0.75 mm2 or 1.0 mm2;

2. Please make sure the length, such as 3 ft’ or 6 ft’;

3. Please tell me the color, such as black, white or orange;

4. If you have special requirement of packaging, please tell me
