H03RT-H

DETAIL

EUROPEAN,AUSTRALIA, KOREA STANDARD RUBBER SHEATHED FLEXIBLE CORD

H03RT-H

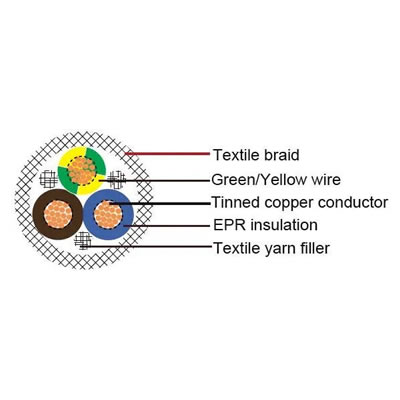

Rubber Insulated and Braid Flexble Cords

Rating:300/300V Standard:DIN EN 50525-2-22

No.of conductor 导体芯数	Conductor导体		Insulation thickness 绝缘厚度 (mm)	Overall diameter 完成外径 (mm)	Max Conductor resistance at 20℃ 20℃时导体电阻最大值Ω/km
	Normal area 标称面积(m㎡)	Construction 结构(NO./mm)			Max Conductor resistance at 20℃ 20℃时导体电阻最大值Ω/km
	Normal area 标称面积(m㎡)	Construction 结构(NO./mm)			Bare	Tinned
2	0.75	43/0.15	0.8	6.60±0.4 .60±0.4	26.0	26.7
	1.0	57/0.15	0.8	6.90±0.4 6.90±0.4	19.5	20.0
	1.5	85/0.15	0.8	7.40±0.4	13.3	13.7
3	0.75	43/0.15	0.8	7.00±0.4 7.00±0.4	26.0	26.7
	1.0	57/0.15	0.8	7.40±0.4	19.5	20.0
	1.5	85/0.15	0.8	7.90±0.4	13.3	13.7

PACKAGE

Packaging & Delivery

1. FOB Ningbo/Shanghai port

2. Payment: 30% in advance,70% against the copy of B/L.

3. Delivery Time: 25 Working days after receipt the payment

4. Sample offered can be delivered within 7 days

5.Packing:Export cartons,pallets

Carton size: 52*30*22CM/ 43*30*28CM/ 43*30*24CM or customized

P.S. Other special requirements are also available.

INQUIRY RULES

1. Please inform me the cord type, such as 0.75 mm2 or 1.0 mm2;

2. Please make sure the length, such as 3 ft’ or 6 ft’;

3. Please tell me the color, such as black, white or orange;

4. If you have special requirement of packaging, please tell me
