H05RN-F

DETAIL

EUROPEAN,AUSTRALIA, KOREA STANDARD RUBBER SHEATHED FLEXIBLE CORD

H05RN-F

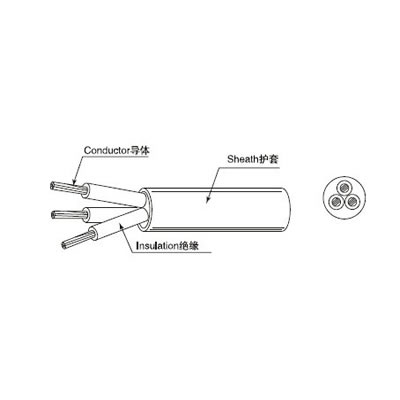

Rubber Insulated and Sheathed Flexible Cords

Rating:300/500V

Standard:DIN VDE 0282-4 HD22.4 AS/NZS 3191

No.of conductor 导体芯数	Conductor 导体		Insulation thickness 绝缘厚度 (mm)	Sheath thickness 护套厚度 (mm)	Overall diameter 完成外径 (mm)	Max Conductor resistance at 20℃ 20℃时导体电阻最大值Ω/km
	Normal area 标称面积(m㎡)	Construction 结构(NO./mm)				Max Conductor resistance at 20℃ 20℃时导体电阻最大值Ω/km
	Normal area 标称面积(m㎡)	Construction 结构(NO./mm)				Bare	Tinned
2	0.75	24/0.20	0.6	0.8	6.4±0.2	26.0	26.7
2	1.0	32/0.20	0.6	0.9	6.9±0.2	19.5	20.0
3	0.75	24/0.20	0.6	0.9	7.0±0.2	26.0	26.7
3	1.0	32/0.20	0.6	0.9	7.4±0.2	19.5	20.0

PACKAGE

Packaging & Delivery

1. FOB Ningbo/Shanghai port

2. Payment: 30% in advance,70% against the copy of B/L.

3. Delivery Time: 25 Working days after receipt the payment

4. Sample offered can be delivered within 7 days

5.Packing:Export cartons,pallets

Carton size: 52*30*22CM/ 43*30*28CM/ 43*30*24CM or customized

P.S. Other special requirements are also available.

INQUIRY RULES

1. Please inform me the cord type, such as 0.75 mm2 or 1.0 mm2;

2. Please make sure the length, such as 3 ft’ or 6 ft’;

3. Please tell me the color, such as black, white or orange;

4. If you have special requirement of packaging, please tell me
