JF-01 SNI 2.5A 250V

INTRO

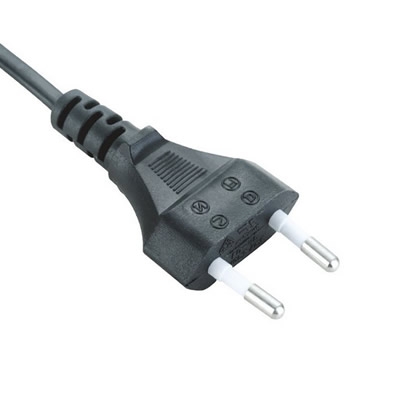

Indonesia Power Cords 2.5A Straight 2 Wire CEE7/16 Plug SNI Certified AC Power Supply Cords
STANDARD
CEE 7/16 SNI
APPROVAL
SNI
MOQ
3000pcs
LEAD TIME
25days
PORT OF LOADING
Ningbo or Shanghai
EMAIL

DETAIL

AVALIABLE WIRE STYLES

(2 poles without earthing contacts with pin provided insulating sleeves, diameter 4.0 mm and attached with flexible cables)

– 60227 IEC 52 / H03VVH2-F 2 x 0.5 – 0.75 mm2 300/300V

– 60227 IEC 53 / H05VVH2-F 2 x 0.75 mm2 300/500V

– 60227 IEC 52 / H03VV-F 2 x 0.5 – 0.75 mm2 300/300V

– 60227 IEC 53 / H05VV-F 2 x 0.75 mm2 300/500 V

– 60245 IEC 53/ H05RR-F 2×0.75 mm2

– 60245 IEC 57/ H05RN-F 2×0.75 mm2

APPROVAL

Model

SPESIFIKASI

(Specification)

JF-01

2.5 A / 250 V~, 2 Kutub tanpa kontak pembumian dengan pin padat berselubung insulasi, diameter 4.0 mm dan dilengkapi kabel fleksibel:

(2 poles without earthing contacts with pin provided insulating sleeves, diameter 4.0 mm and attached with flexible cables)

– 60227 IEC 52 / H03VVH2-F 2 x 0.5 – 0.75 mm2 300/300V

– 60227 IEC 53 / H05VVH2-F 2 x 0.75 mm2 300/500V

– 60227 IEC 52 / H03VV-F 2 x 0.5 – 0.75 mm2 300/300V

– 60227 IEC 53 / H05VV-F 2 x 0.75 mm2 300/500 V

– 60245 IEC 53/ H05RR-F 2×0.75 mm2

– 60245 IEC 57/ H05RN-F 2×0.75 mm2

JF-02

16 A / 250 V~, 2 Kutub tanpa kontak pembumian dengan diameter pin padat 4.8 mm dan dilengkapi kabel fleksibel:

(2 poles without earthing contacts with solid pins diameter 4.8 mm and attached with flexible cables)

– 60227 IEC 52 / H03VVH2-F 2 x 0.5 – 0.75 mm2 300/300 V

– 60227 IEC 53 / H05VVH2-F 2 x 0.75 – 1 mm2 300/500 V

– 60227 IEC 52 / H03VV-F 2 x 0.5 – 0.75 mm2 300/300 V

– 60227 IEC 53 / H05VV-F 2 x 0.75 – 1.5 mm2 300/500 V

– 60245 IEC 53/ H05RR-F 2 x 0.75 – 1.5 mm2

– 60245 IEC 57/ H05RN-F 2×0.75 – 1 mm2

– 60245 IEC 66/ H07RN-F 2×1 – 1.5 mm2

– 60245 IEC 89/H03RT-H 2 x 0.75 – 1 mm2

JF-03

16 A / 250 V~, 3 Kutub dengan kontak pembumian samping, diameter pin padat 4.8 mm dan dilengkapi kabel fleksibel:

(3 poles with side earthing contacts, solid pins diameter 4.8 mm and attached with flexible cables)

– 60227 IEC 52 / H03VV-F 3 x 0.5 – 0.75 mm2 300/300 V

– 60227 IEC 53 / H05VV-F 3 x 0.75 – 1.5 mm2 300/500 V

– 60245 IEC 53/ H05RR-F 3 x 0.75 – 1.5 mm2

– 60245 IEC 57/ H05RN-F 3×0.75 – 1 mm2

– 60245 IEC 66/ H07RN-F 3×1 – 1.5 mm2

– 60245 IEC 89/H03RT-H 3 x 0.75 – 1 mm2

PACKAGE

Packaging & Delivery

1. FOB Ningbo/Shanghai port

2. Payment: 30% in advance,70% against the copy of B/L.

3. Delivery Time: 25 Working days after receipt the payment

4. Sample offered can be delivered within 7 days

5.Packing:Export cartons,pallets

Carton size: 52*30*22CM/ 43*30*28CM/ 43*30*24CM or customized

P.S. Other special requirements are also available.

INQUIRY RULES

1. Please inform me the cord type, such as 0.75 mm2 or 1.0 mm2;

2. Please make sure the length, such as 3 ft’ or 6 ft’;

3. Please tell me the color, such as black, white or orange;

4. If you have special requirement of packaging, please tell me

COMPANY：

Yuyao Fengshen Electronics Co., Ltd. was founded in 2016 and is a subsidiary of Yunhuan Group. It is a large-scale enterprise specializing in the production of power cords, rubber cables, spring cables, low-smoke halogen-free cables, plugs and sockets, wire harnesses, etc.

ADDRESS：

Office: No. 4 Xieli Road, Simen Town, Yuyao, Zhejiang, China
Address: Yunhuan Industrial Park, Simen, Yuyao, Zhejiang, China
Tel: +86-0574-22600136
Email: sales@cncords.com
Wechat:18069188213
