JF-02 SNI 16A 250V

(Specification)

JF-01

(2 poles without earthing contacts with pin provided insulating sleeves, diameter 4.0 mm and attached with flexible cables)

– 60227 IEC 52 / H03VVH2-F 2 x 0.5 – 0.75 mm2 300/300V

– 60227 IEC 53 / H05VVH2-F 2 x 0.75 mm2 300/500V

– 60227 IEC 52 / H03VV-F 2 x 0.5 – 0.75 mm2 300/300V

– 60227 IEC 53 / H05VV-F 2 x 0.75 mm2 300/500 V

–   60245  IEC 53/ H05RR-F 2×0.75  mm2

–   60245 IEC 57/ H05RN-F 2×0.75  mm2

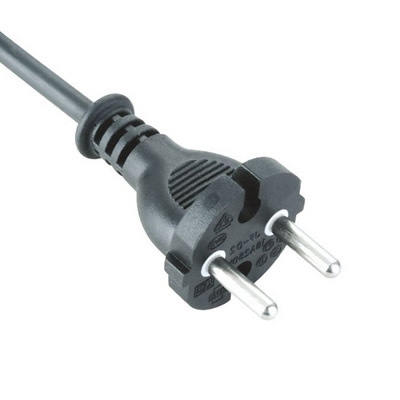

JF-02

(2 poles without earthing contacts with solid pins diameter 4.8 mm and attached with flexible cables)

– 60227 IEC 52 / H03VVH2-F 2 x 0.5 – 0.75 mm2 300/300 V

– 60227 IEC 53 / H05VVH2-F 2 x 0.75 – 1 mm2 300/500 V

–   60227 IEC 52 / H03VV-F 2 x 0.5 – 0.75 mm2 300/300 V

–   60227 IEC 53 / H05VV-F 2 x 0.75 – 1.5 mm2 300/500 V

– 60245 IEC 53/ H05RR-F 2 x 0.75 – 1.5 mm2

– 60245 IEC 57/ H05RN-F 2×0.75 – 1 mm2

– 60245 IEC 66/ H07RN-F 2×1 – 1.5 mm2

– 60245 IEC 89/H03RT-H 2 x 0.75 – 1 mm2

JF-03

(3 poles with side earthing contacts, solid pins diameter 4.8 mm and attached with flexible cables)

–   60227 IEC 52 / H03VV-F 3 x 0.5 – 0.75 mm2 300/300 V

–   60227 IEC 53 / H05VV-F 3 x 0.75 – 1.5 mm2 300/500 V

– 60245 IEC 53/ H05RR-F 3 x 0.75 – 1.5 mm2

– 60245 IEC 57/ H05RN-F 3×0.75 – 1 mm2

– 60245 IEC 66/ H07RN-F 3×1 – 1.5 mm2

– 60245 IEC 89/H03RT-H 3 x 0.75 – 1 mm2
