JF-02 SNI 16A 250V

INTRO

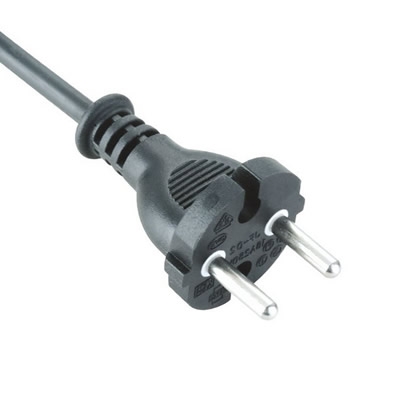

Indonesia Power Cords 16A Straight 2 Wire CEE7/17 Plug SNI Certified AC Power Supply Cords
STANDARD
CEE 7/17
APPROVAL
SNI
MOQ
3000pcs
LEAD TIME
25days
PORT OF LOADING
Ningbo or Shanghai
EMAIL

DETAIL

AVAILABLE WIRE STYLES:

(2 poles without earthing contacts with solid pins diameter 4.8 mm and attached with flexible cables)

– 60227 IEC 52 / H03VVH2-F 2 x 0.5 – 0.75 mm2 300/300 V

– 60227 IEC 53 / H05VVH2-F 2 x 0.75 – 1 mm2 300/500 V

– 60227 IEC 52 / H03VV-F 2 x 0.5 – 0.75 mm2 300/300 V

– 60227 IEC 53 / H05VV-F 2 x 0.75 – 1.5 mm2 300/500 V

– 60245 IEC 53/ H05RR-F 2 x 0.75 – 1.5 mm2

– 60245 IEC 57/ H05RN-F 2×0.75 – 1 mm2

– 60245 IEC 66/ H07RN-F 2×1 – 1.5 mm2

– 60245 IEC 89/H03RT-H 2 x 0.75 – 1 mm2

APPROVAL

Model

SPESIFIKASI

(Specification)

JF-01

2.5 A / 250 V~, 2 Kutub tanpa kontak pembumian dengan pin padat berselubung insulasi, diameter 4.0 mm dan dilengkapi kabel fleksibel:

(2 poles without earthing contacts with pin provided insulating sleeves, diameter 4.0 mm and attached with flexible cables)

– 60227 IEC 52 / H03VVH2-F 2 x 0.5 – 0.75 mm2 300/300V

– 60227 IEC 53 / H05VVH2-F 2 x 0.75 mm2 300/500V

– 60227 IEC 52 / H03VV-F 2 x 0.5 – 0.75 mm2 300/300V

– 60227 IEC 53 / H05VV-F 2 x 0.75 mm2 300/500 V

– 60245 IEC 53/ H05RR-F 2×0.75 mm2

– 60245 IEC 57/ H05RN-F 2×0.75 mm2

JF-02

16 A / 250 V~, 2 Kutub tanpa kontak pembumian dengan diameter pin padat 4.8 mm dan dilengkapi kabel fleksibel:

(2 poles without earthing contacts with solid pins diameter 4.8 mm and attached with flexible cables)

– 60227 IEC 52 / H03VVH2-F 2 x 0.5 – 0.75 mm2 300/300 V

– 60227 IEC 53 / H05VVH2-F 2 x 0.75 – 1 mm2 300/500 V

– 60227 IEC 52 / H03VV-F 2 x 0.5 – 0.75 mm2 300/300 V

– 60227 IEC 53 / H05VV-F 2 x 0.75 – 1.5 mm2 300/500 V

– 60245 IEC 53/ H05RR-F 2 x 0.75 – 1.5 mm2

– 60245 IEC 57/ H05RN-F 2×0.75 – 1 mm2

– 60245 IEC 66/ H07RN-F 2×1 – 1.5 mm2

– 60245 IEC 89/H03RT-H 2 x 0.75 – 1 mm2

JF-03

16 A / 250 V~, 3 Kutub dengan kontak pembumian samping, diameter pin padat 4.8 mm dan dilengkapi kabel fleksibel:

(3 poles with side earthing contacts, solid pins diameter 4.8 mm and attached with flexible cables)

– 60227 IEC 52 / H03VV-F 3 x 0.5 – 0.75 mm2 300/300 V

– 60227 IEC 53 / H05VV-F 3 x 0.75 – 1.5 mm2 300/500 V

– 60245 IEC 53/ H05RR-F 3 x 0.75 – 1.5 mm2

– 60245 IEC 57/ H05RN-F 3×0.75 – 1 mm2

– 60245 IEC 66/ H07RN-F 3×1 – 1.5 mm2

– 60245 IEC 89/H03RT-H 3 x 0.75 – 1 mm2

PACKAGE

Packaging & Delivery

1. FOB Ningbo/Shanghai port

2. Payment: 30% in advance,70% against the copy of B/L.

3. Delivery Time: 25 Working days after receipt the payment

4. Sample offered can be delivered within 7 days

5.Packing:Export cartons,pallets

Carton size: 52*30*22CM/ 43*30*28CM/ 43*30*24CM or customized

P.S. Other special requirements are also available.

INQUIRY RULES

1. Please inform me the cord type, such as 0.75 mm2 or 1.0 mm2;

2. Please make sure the length, such as 3 ft’ or 6 ft’;

3. Please tell me the color, such as black, white or orange;

4. If you have special requirement of packaging, please tell me

COMPANY：

Yuyao Fengshen Electronics Co., Ltd. was founded in 2016 and is a subsidiary of Yunhuan Group. It is a large-scale enterprise specializing in the production of power cords, rubber cables, spring cables, low-smoke halogen-free cables, plugs and sockets, wire harnesses, etc.

ADDRESS：

Office: No. 4 Xieli Road, Simen Town, Yuyao, Zhejiang, China
Address: Yunhuan Industrial Park, Simen, Yuyao, Zhejiang, China
Tel: +86-0574-22600136
Email: sales@cncords.com
Wechat:18069188213
