JF-03 SNI 16A 250V

INTRO

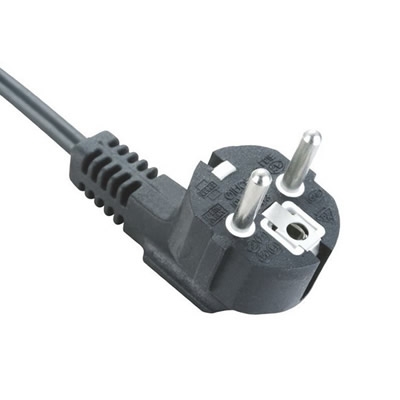

Indonesia AC Power Cords,Power Supply Cords CEE7/7 SNI 16 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type F Plug
STANDARD
CEE 7/7
APPROVAL
SNI
MOQ
3000pcs
LEAD TIME
25days
PORT OF LOADING
Ningbo or Shanghai
EMAIL

DETAIL

AVALIABLE WIRE STYLES

(3 poles with side earthing contacts, solid pins diameter 4.8 mm and attached with flexible cables)

– 60227 IEC 52 / H03VV-F 3 x 0.5 – 0.75 mm2 300/300 V

– 60227 IEC 53 / H05VV-F 3 x 0.75 – 1.5 mm2 300/500 V

– 60245 IEC 53/ H05RR-F 3 x 0.75 – 1.5 mm2

– 60245 IEC 57/ H05RN-F 3×0.75 – 1 mm2

– 60245 IEC 66/ H07RN-F 3×1 – 1.5 mm2

– 60245 IEC 89/H03RT-H 3 x 0.75 – 1 mm2

APPROVAL

Model

SPESIFIKASI

(Specification)

JF-01

2.5 A / 250 V~, 2 Kutub tanpa kontak pembumian dengan pin padat berselubung insulasi, diameter 4.0 mm dan dilengkapi kabel fleksibel:

(2 poles without earthing contacts with pin provided insulating sleeves, diameter 4.0 mm and attached with flexible cables)

– 60227 IEC 52 / H03VVH2-F 2 x 0.5 – 0.75 mm2 300/300V

– 60227 IEC 53 / H05VVH2-F 2 x 0.75 mm2 300/500V

– 60227 IEC 52 / H03VV-F 2 x 0.5 – 0.75 mm2 300/300V

– 60227 IEC 53 / H05VV-F 2 x 0.75 mm2 300/500 V

– 60245 IEC 53/ H05RR-F 2×0.75 mm2

– 60245 IEC 57/ H05RN-F 2×0.75 mm2

JF-02

16 A / 250 V~, 2 Kutub tanpa kontak pembumian dengan diameter pin padat 4.8 mm dan dilengkapi kabel fleksibel:

(2 poles without earthing contacts with solid pins diameter 4.8 mm and attached with flexible cables)

– 60227 IEC 52 / H03VVH2-F 2 x 0.5 – 0.75 mm2 300/300 V

– 60227 IEC 53 / H05VVH2-F 2 x 0.75 – 1 mm2 300/500 V

– 60227 IEC 52 / H03VV-F 2 x 0.5 – 0.75 mm2 300/300 V

– 60227 IEC 53 / H05VV-F 2 x 0.75 – 1.5 mm2 300/500 V

– 60245 IEC 53/ H05RR-F 2 x 0.75 – 1.5 mm2

– 60245 IEC 57/ H05RN-F 2×0.75 – 1 mm2

– 60245 IEC 66/ H07RN-F 2×1 – 1.5 mm2

– 60245 IEC 89/H03RT-H 2 x 0.75 – 1 mm2

JF-03

16 A / 250 V~, 3 Kutub dengan kontak pembumian samping, diameter pin padat 4.8 mm dan dilengkapi kabel fleksibel:

(3 poles with side earthing contacts, solid pins diameter 4.8 mm and attached with flexible cables)

– 60227 IEC 52 / H03VV-F 3 x 0.5 – 0.75 mm2 300/300 V

– 60227 IEC 53 / H05VV-F 3 x 0.75 – 1.5 mm2 300/500 V

– 60245 IEC 53/ H05RR-F 3 x 0.75 – 1.5 mm2

– 60245 IEC 57/ H05RN-F 3×0.75 – 1 mm2

– 60245 IEC 66/ H07RN-F 3×1 – 1.5 mm2

– 60245 IEC 89/H03RT-H 3 x 0.75 – 1 mm2

PACKAGE

Packaging & Delivery

1. FOB Ningbo/Shanghai port

2. Payment: 30% in advance,70% against the copy of B/L.

3. Delivery Time: 25 Working days after receipt the payment

4. Sample offered can be delivered within 7 days

5.Packing:Export cartons,pallets

Carton size: 52*30*22CM/ 43*30*28CM/ 43*30*24CM or customized

P.S. Other special requirements are also available.

INQUIRY RULES

1. Please inform me the cord type, such as 0.75 mm2 or 1.0 mm2;

2. Please make sure the length, such as 3 ft’ or 6 ft’;

3. Please tell me the color, such as black, white or orange;

4. If you have special requirement of packaging, please tell me
